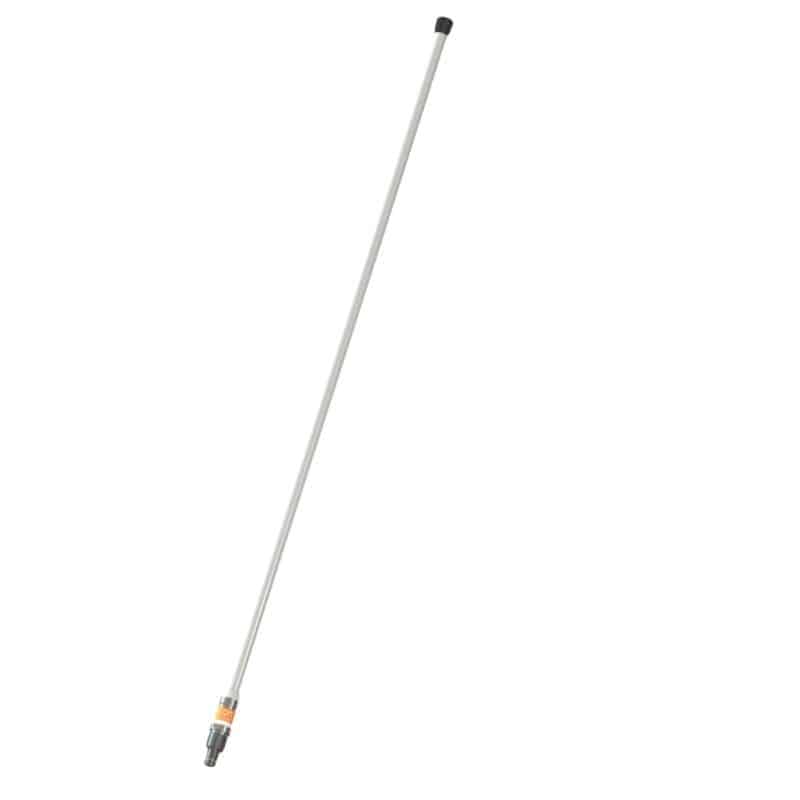

3 dB UHF Fibreglass Antenna 1.14 m (5 versions) UHF43

COLOUR White and chrome

HEIGHT 855 – 1145 mm (depending on frequency)

WEIGHT Max. 400 g (depending on frequency)

MOUNTING On 1″ threaded pole (G1″-11 thread) with Revolving Nut Kit or on optionally brackets

MOUNTING PLACE On mast or deck

MATERIALS PU-painted glassfibre, PTFE, copper and chromed brass

SURVIVAL WIND SPEED 55 m/s (125 mph)

OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR N-female

CABLE No cable supplied

INGRESS PROTECTION IP66

VIBRATION IEC 60068-2-6, IEC 60068-2-64

SERIAL NO. On product label

P/N 14043-000A: 380-400 MHz (TETRA – Antenna only – bulk packing)

P/N 14043-000B: 406-430 MHz (TETRA – Antenna only – bulk packing)

P/N 14043-000C: 425-450 MHz (ISM – Antenna only – bulk packing)

P/N 14043-000D: 445-470 MHz (PMR – Antenna only – bulk packing)

P/N 14043-000E: 330-360 MHz (NJFA – Antenna only – bulk packing)

P/N 14043-001A/B/C/D/E (Individually packing in Polybag)

P/N 14043-002A/B/C/D/E (Individually packing in Carton tube)

P/N If 1″ Revolving Nut Kit is needed together with antenna: Change above listed P/N to xxxxx-431 for kit in Polybag

P/N If 1″ Revolving Nut Kit is needed together with antenna: Change above listed P/N to xxxxx-432 for kit in Carton tube

TYPE Bulk packing or individual packing in Polybag or Carton tube (See “ORDERING INFORMATION”)

SIZE Max. 1.5 m (“A”-version)

WEIGHT Approx. 0.5 kg
