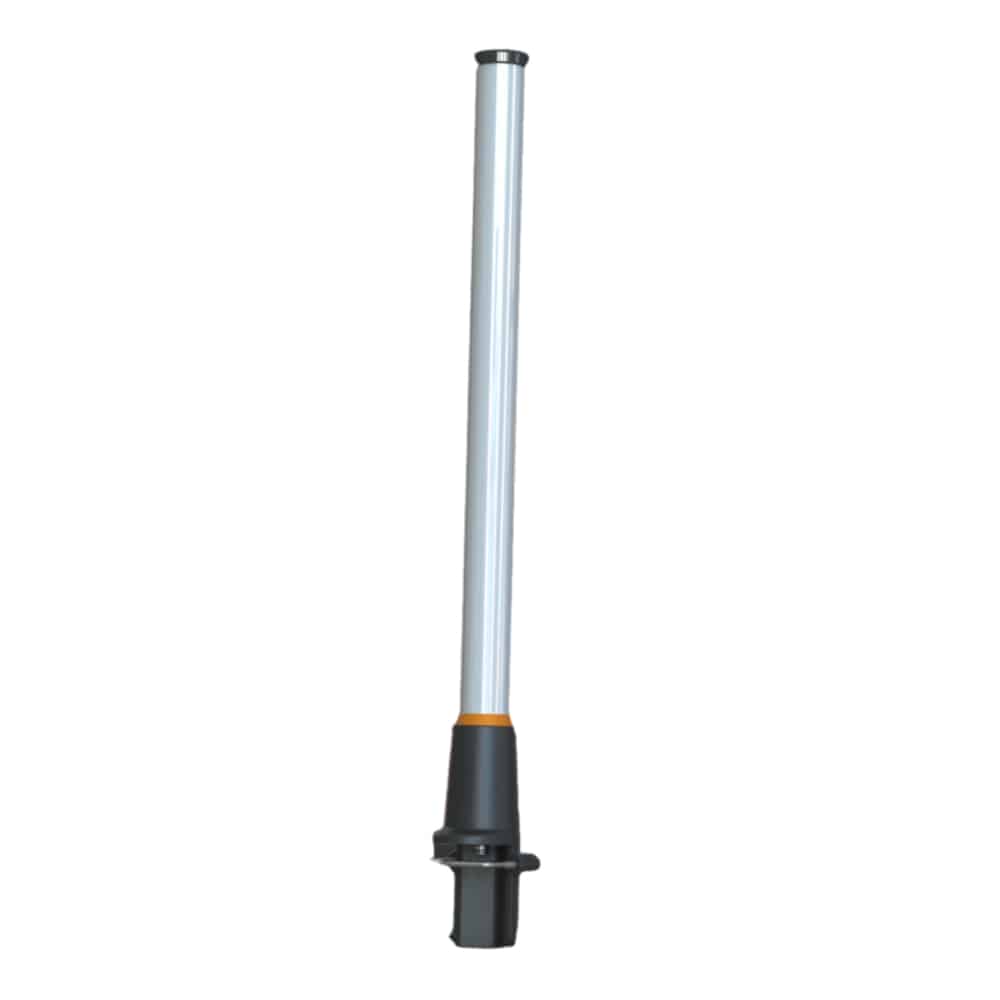

High Power Unity Gain Omni Base Station Antenna for the 150 MHz band 25001-012D

HPBASE 01 A/B/C/D/E

This meticulously constructed base station antenna with integrated multipurpose mounting bracket comes with a generous bandwidth which reduces the need for multiple antennas both in stock and on installation sites.

Very high power antenna design
No groundplane needed

QUANTITY DISCOUNT PRICES

SKU: 25001-012D Category: ANTENNAS

Description

[su_row][su_column size=”1/2″ center=”no” class=””]

Mechanical specifications

COLOUR White, Black and Orange

LENGTH See Outline Drawing

WEIGHT 3.3 – 3.8 kg (depending on model)

MOUNT TYPE Fixed Tube Mounting Bracket. Stainless Steel Mounting Hardware included.

MOUNTING PLACE On vertical mast tube; Ø 30 – 60 mm

MATERIALS Brass, Copper, Fibreglass and Aluminium

SURVIVAL WIND SPEED 55 m/s

OPERATING TEMPERATURE -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR N-female

INGRESS PROTECTION IP66

VIBRATION IEC 60068-2-6, IEC 60068-2-64

SERIAL NO. On product label

Ordering information

P/N 25001-012D: 144-170 MHz (Individually packing in Carton tube)

Packaging information

TYPE See “Part No.”

[/su_column] [su_column size=”1/2″ center=”no” class=””]

[pdf-embedder url=”https://renaironline.co.uk/wp-content/uploads/2020/11/scan-HPBASE01-ABCDE.pdf” title=”scan-HPBASE01 A:B:C:D:E”]

Download Data Sheet HERE
